gunzrus · New Member

Hi guys. I'm new to the forums.

I bought this gun, crossman quest 1000x, http://www.crosman.com/airguns/rifles/break-barrel/C1K77X , from pyramid air. Basically I was shooting as a kid, and wanted to relive the fun times. I had this gun for close to a year now. Though, I don't shoot it much, instead I shoot my IZH 61 a lot. Problem is that quest 1000x is more accurate with iron sights than with a scope!

Basically, at 15 feet distance, you could get a 1.5 to 2 inch group out of it.

I pin pointed the problem. When you hold the gun between your knees, and move barrel left to right, you could see it move. Just a tiny bit. But that's enough to affect the accuracy.

Thus my question. How to make this gun accurate? If it at all possible.

broommaster2000 · Moderator

Hm, shims between the breech and the receiver might help, or just turning the screw a bit tighter.

gunzrus · New Member

I turned the screw, just now, while waiting for a response. At 15 feet accuracy went from 2 inch groups to half inch groups. Still not enough.

I wonder where I could get shims?

AirGunEric · Site Admin

Slavia · Moderator

Since the Crosman Quest/Phantom/G1 are all cousins, you probably have the same setup as my G1. There are two plastic washers between the breech block and compression tube yoke. They get mashed pretty quickly. Also, the barrel pivot screw head rests against the breech block, so every time you cock it the breech block turns the screw. That screw does not clamp both sides of the yoke together. It makes sense that if the barrel is flopping around, then sights mounted on the barrel will work better than a scope mounted on the compression tube.

I got rid of the plastic washers and replaced them with steel from the hardware store. I opened up the I.D. a little with a Dremel, and ground the thickness to fit by hand with a carborundum sharpening stone:
http://www.airgunhome.com/agforum/viewtopic.php?t=1760&postdays=0&postorder=asc&start=15

That made things a little tighter and smoother, but the screw kept coming loose. (Make a small scratch or use a drop of paint near the screw head's slot to see if yours is loosening like mine did). Blue Loctite slowed it down, but I had to add a setscrew to finally stop it from rotating:
http://www.airgunhome.com/agforum/viewtopic.php?t=1760&postdays=0&postorder=asc&start=45

You might also consider polishing the muzzle crown. If you've never done it, it can sound exotic and difficult. It's actually simple and cheap:
http://www.airgunhome.com/agforum/viewtopic.php?t=15

Introducing a choke at the muzzle worked well on the G1. If you get that far, give a shout and we'll walk you through it.

FlyingSquirrel · New Member

Hey salvia, I found this forum when looking for info on my crosman quest that im getting for christmas, and after reading your entire post on your g1, i sneaked in and opened it up today Mr. Green

and i saw that i have a trigger similar to the gtx/grt triggers, i think it has quite a smooth pull, and was wondering how i could compare that to the regular trigger. Eg: some way to measure lbs required, also i am thinking about modding my gun in quite a few ways similar to your g1 Smile

rsterne · Moderator

In addition, my Phantom (same as the Quest) had the hole in the pivot bushing off center.... Even if you loctited the screw, the bushing could spin, causing a POI change.... Rolling Eyes

I had to make a new bushing that was concentric, and I used one steel washer and one plastic.... I fitted things so that the steel washer was on the left side under the head of the screw and clamped the bushing to prevent it from rotating.... The original plastic washer was used on the right side.... I also used a set-screw to prevent the pivot screw from loosening.... NO MORE PROBLEMS.... Mr. Green

Bob

AirGunEric · Site Admin

Slavia · Moderator

By chance has anyone seen photos of the new Crosman trigger? (Aside from the one on the box, that is.)

FlyingSquirrel · New Member

FlyingSquirrel · New Member

ok, so i took the assembally out of the stock and i took some pics of the trigger, here they are: (sorry for the quality, they are from my iphone..)
You can see they used blue loctite on the screws from the factory

[/img]

Left side trigger:

Right side trigger:

Dissasemballed trigger:

Please ask as many questions as you want and ill be happy to answer them, hopefully ill have a camera soon and i can take better pics.

ps: i welcome myself to the forum xD

donec · Senior Member

I have been looking at the Crosman Quest 1000x, watching some videos on it and wondering what the greatest distance anyone has use it unmodded at and how tight of a group they can get at the longest distance?

Also what would be an inexpensive reliable scope for the Crosman Quest 1000x?

AirGunEric · Site Admin

Can't see in the picture- but are there two adjustment screws in the trigger itself?

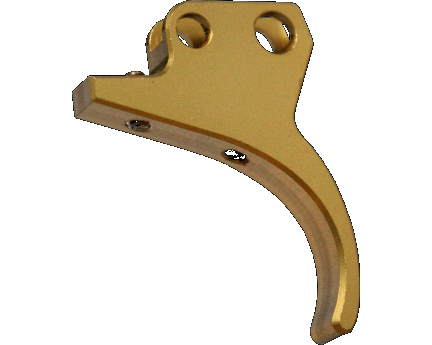

Look here at the "genuine article":

Notice the set screws in the horizontal part of the blade? This is where the critical adjustments are made for these triggers. If the Crosman unit does not have them, the GTX II still has it's place, even on the newest guns.

Slavia · Moderator

Thanks for the photos! I was curious about that.

It still has the same adjustment screw peeking out behind the trigger, and still has the trigger return spring. The replacement triggers don't use those parts. It looks like they copied the appearance of an aftermarket trigger, but didn't change the mechanism - simply replacing the stamped trigger with a cast or forged one.

Thanks again for your efforts.

FlyingSquirrel · New Member

Yeah, i think its just the same trigger with a new look, there is only one ajustment screw, and its not on the trigger.. kinda useless.. but after i took out the return spring it was a very smooth pull.. i wonder if it would work without the spring.. i did put the spring back, but i bent it slightly to offer a shorter first stage.
